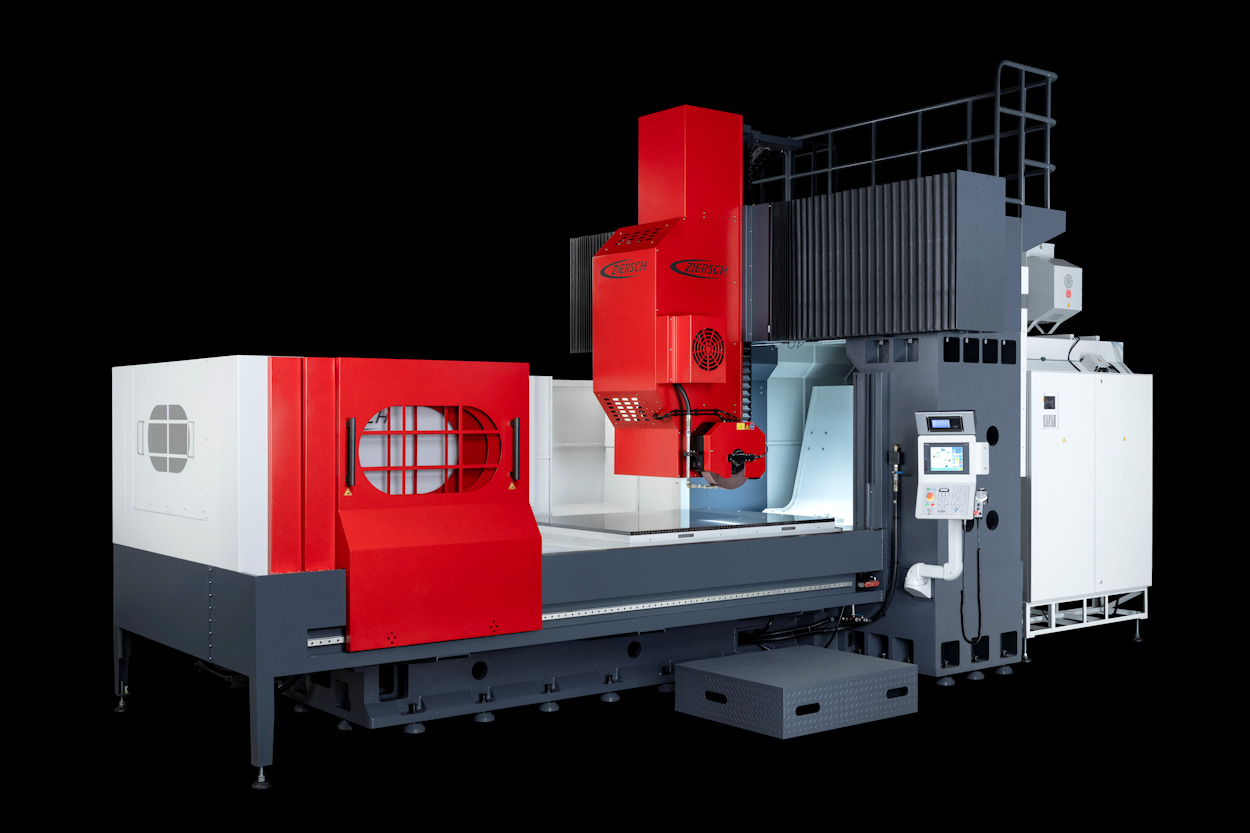

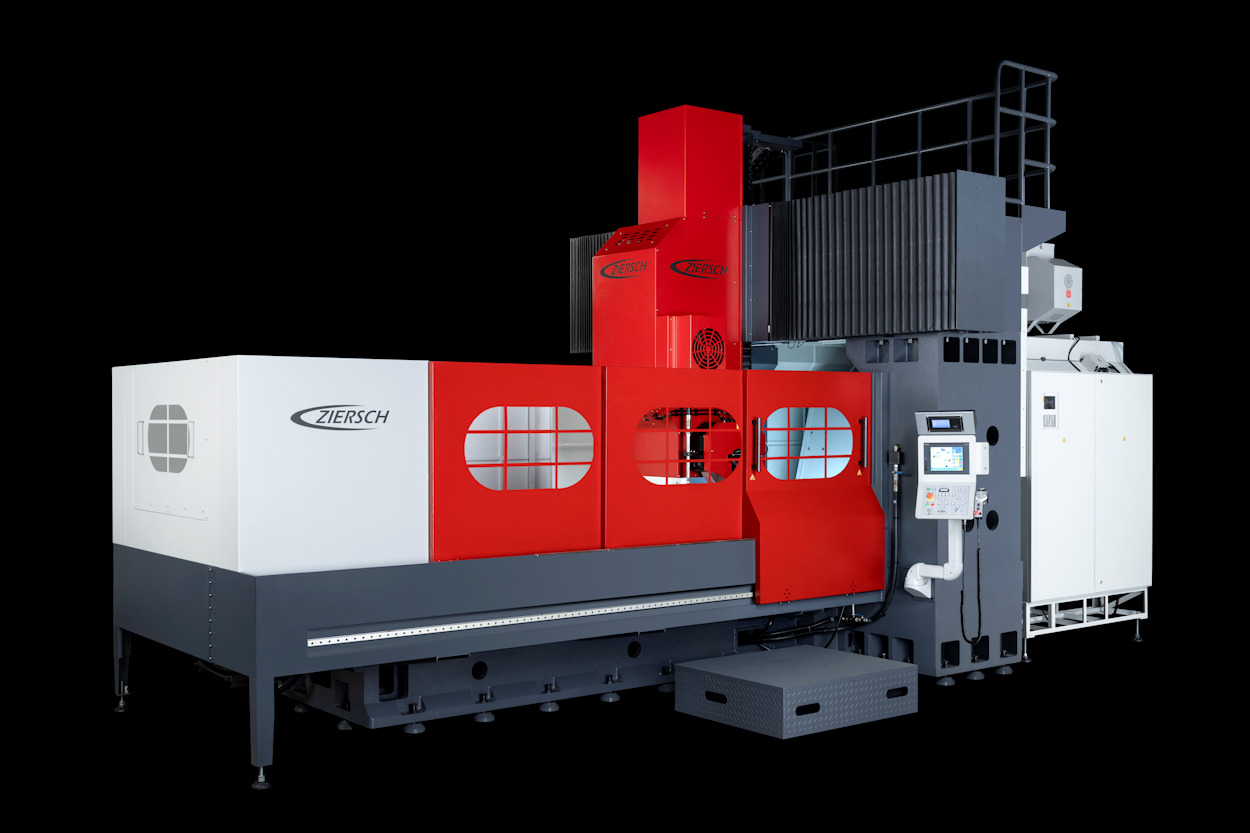

Portal grinding machines Z-SERIES
![ZIERSCH Portal grinding machines](../img/portalschleifmaschinen00.jpg)
Features
For the grinding of large work pieces with a width of up to 2,200 mm. Large and heavy work pieces can quickly and effectively be machined on these portal grinding machines.
Portal grinding machines with standard equipment alone are available at a very good price/performance ratio. Standard equipment includes amongst others the following:
For the grinding of large work pieces with a width of up to 2,200 mm. Large and heavy work pieces can quickly and effectively be machined on these portal grinding machines.
Portal grinding machines with standard equipment alone are available at a very good price/performance ratio. Standard equipment includes amongst others the following:
- Sturdy, cast iron execution of all machine components
- Scraped and turcite coated slideways in the X-axis
- Preloaded precision linear guideways in the Y-axis and Z-axis (Bosch Rexroth)
- Hydraulic table motion with return cooling unit
- Electro-mechanic cross- and vertical motion
- Measuring system in vertical axis (Heidenhain) for precise positioning
- Paper band filtration unit with 1,700 l tank and 5 bar pressure pump
- Fully automatic grinding and dressing cycles
- Additional magnetic separator for prefiltration of the paper band filtration unit
- Integrated rinsing channel
- Machine lamps
- Table-mounted dressing device
- Partial encapsulation of the machine with sliding door
- High-performance spindle drive for efficient grinding
- Automatic vertical infeed with dressing amount compensation
- Fully automatic grinding cycle with dressing cycles
- Easy operation via touchscreen
- Large and clear colour screen (10.4")
- Electronic handwheel, usable in vertical- and cross axis
